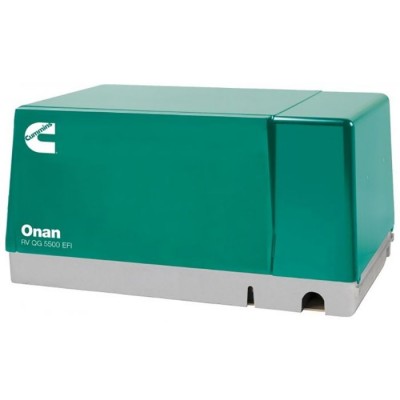

Cummins Onan QG 5500 Single Phase 120V 5.5kW RV Generator 5.5HGJAA-8307
Cummins Onan QG 5500 Single Phase 120V 5.5kW RV Generator 5.5HGJAA-8307
Cummins Onan QG 5500 5.5kW 120 Volt Single-Phase Air-Cooled EFI RV Gasoline Generator EVAP
The Cummins Onan 5.5HGJAA is designed for reliable RV power wherever you roam. This generator features exceptionally low vibration levels and is the quietest in its class. This generator features self-diagnostic capability, and can run two air conditioners with power to spare. Cummins backs this generator with a standard 3-year limited warranty.
Features
- First EFI (electronic fuel injection) generator set in its class
- 4-cycle, OHV, 90-degree V-twin engine
- EFI provides improved hot and cold start capability
- Quietest and lowest vibration generator set in its class
- Integrated design with enclosed muffler for easy installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two air conditioners with power to spare
- Digital regulation for voltage stability as appliance loads change
Package Contents
- Cummins Onan QG 5500 EFI Gas Generator
- User Manual
Specifications
| Item Number | A075D284 |
| Model Number | 5.5HGJAA-8307 |
| Model Name | QG 5500 EFI |
| Fuel Type | Gasoline |
| Voltage | 120V, Single-Phase |
| Frequency | 60 Hz |
| RPM | 2880 |
| Auto Voltage Regulation | Yes |
| Rated Watts | 5500 Watts |
| Fuel Consumption @ 50% Load | 0.6 gallons/hr |
| Fuel Consumption @ 100% Load | 0.9 gallons/hr |
| Rated Amps | 45.8 Amps |
| Decibel Rating @ 10 ft. (3m) | 69 dB(A) |
| Circuit Breaker Size | (2) 30 A |
| Engine Brand | Cummins Onan |
| Starting System | Remote, 12-Volt |
| Displacement | 653 CC |
| Agency Compliance | CARB (California) |
| Dimensions (L x W x H) | 33.6" x 22.2" x 16.7" |
| Weight | 288 lbs. |
