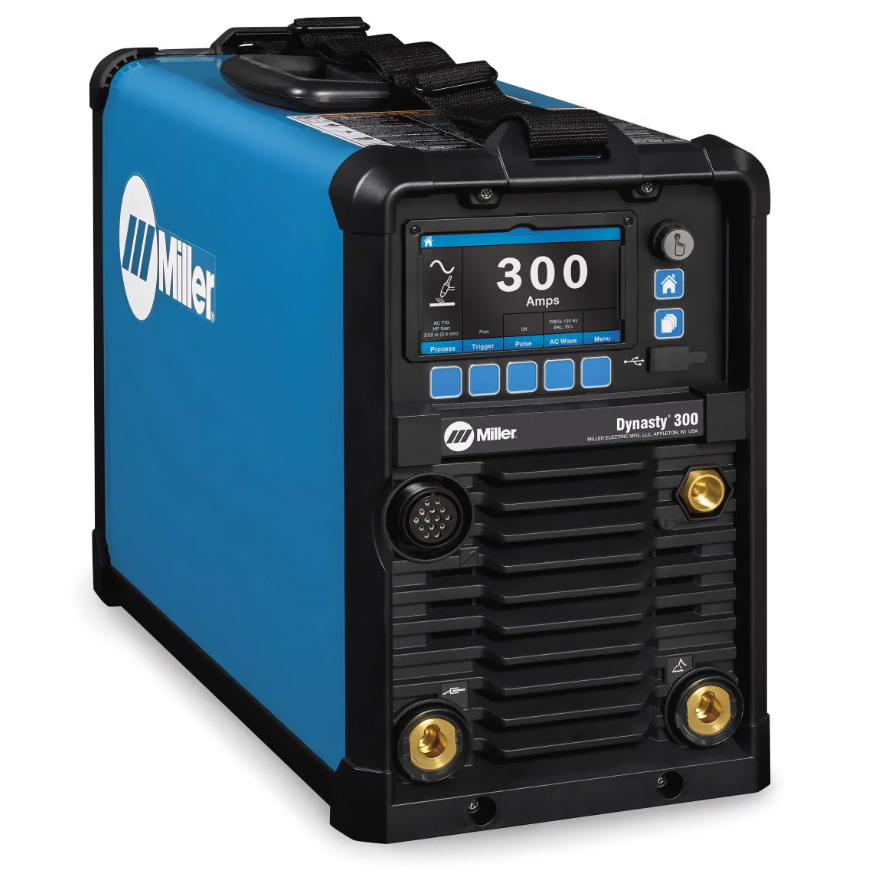

Miller 907819 Dynasty 300 CV Multiprocess Welder with CPS
Miller Dynasty 300 CV Multiprocess Welder w/CPS (907819)
The primary purpose of the Dynasty 300 with CV is so that the unit may be paired up with a Suitcase Feeder such as the ArcReach 8 or 12 and used for high-output wire feeding (MIG).
Processes
• AC/DC TIG
• Pulsed TIG
• Stick
• Air Carbon Arc
• MIG (With Paired Suitcase Feeder, Not Included)
Features
• Auto-Line (208-600V Hookup)
• Software Updates through USB Port
• Blue-Lightning High Frequency Arc Start
• Digital Meters
• Fan-On-Demand
• Cooler-On-Demand
• Wind Tunnel Technology
• Pro-Set Parameters
• Sleep Timer Conserves Power
• Cooler Power Supply (CPS) 120V Receptacle
Quick Specs
• Voltage: 208-600V | 1 or 3 Phase
• Amperage Range: 2-300A AC | 1-300A DC
• Duty Cycle (3-Phase): 60% @ 250A
• AC Material Thickness: 0.012-3/8″
• Weight: 55lbs
• Max Stick Electrode Size: 1/4″ 6010 | 7/32″ 7018 | 3/16″ 7024
• Generator Requirement: 12.5 KW
Includes
• Dynasty 300 Power Source
• (2) 50mm Dinse Connectors
• 8 Foot Power Cord (No Plug)
• User Manual
| Brand | Miller |
|---|---|
| SKU | IMIL20180009 |
| MPN | MIL907819 |
| Mfgs MPN | 907819 |
| UPC | 715959698351 |
| Prop65 | Yes |
| Material | Aluminum, Mild Steel, Stainless Steel, Titanium |
| Process | Air Carbon Arc Cutting and Gouging, MIG, Stick, TIG |
| Max Amperage Output | 280 Amps |
| Usage | Heavy Industrial, Industrial, Light Industrial |
| Phase | Both |
| Manufacturer’s Warranty | 3 Years |
| Polarity | AC/DC |
| Duty Cycle | 60% |
| Duty Cycle | 60% @ 200A (3-Phase) | 60% @ 180A (1-Phase) |
| Portability | 55 lbs |
| Skill Level | Career Welder |
| Input Voltage | 208, 220, 230, 240, 460, 575 |
