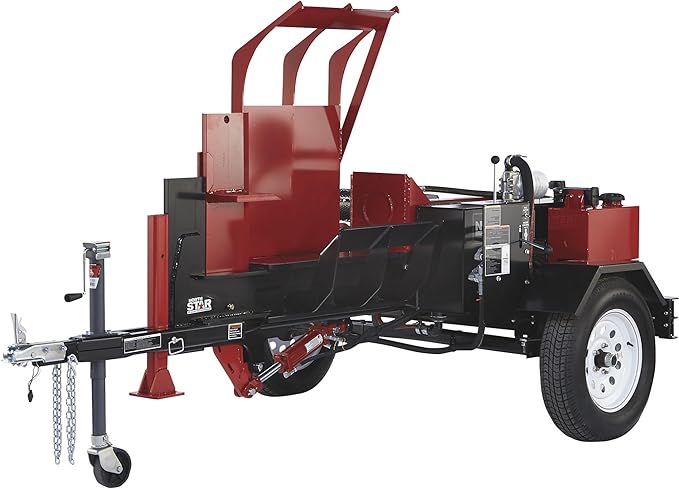

NorthStar Horizontal Log Splitter with Log Lift, 42-Ton Force, 688cc Honda GX630 Engine

US $3,708.95
Brand:
Condition:
New
Availability:
In Stock
( )
Qty:

NorthStar Horizontal Log Splitter with Log Lift, 42-Ton Force, 688cc Honda GX630 Engine

This NorthStar Horizontal Log Splitter with Log Lift gives you premium components and exclusive features that let you save time, increase performance and work effectively. The backbone of this log splitter is an industrial-strength I-beam with heavy plate steel reinforcement. Hydraulically adjustable NorthStar 4-way wedge lets you quickly move from 4-way to 2-way splitting in a matter of seconds. 4-way splitting makes each stroke more efficient. The auto-return wedge saves time and effort when splitting.

The premium hydraulic system is protected by a quad filtering system that uses 4 different components to protect the hydraulic system from contaminants. Large hydraulic oil reservoir allows fluid to cool, reducing wear and allowing fluid to last longer. High-speed hubs, torsion axle, 15in. wheels with high-speed tires and integrated trailer lights make it easy to get to the worksite. Comes with hydraulic log lift, capable of raising logs up to 660 lbs. Actual hydraulic cylinder color may vary from product shown (cylinder will be black or red, dependent upon available stock.)

Features

  • 6in. x 30in. stroke cylinder generates 42 tons of splitting force
  • Honda commercial GX630 series engine with cast iron cylinder sleeve, low oil shutdown and steel fuel tank
  • 4-way splitting wedge with hydraulic adjustment and hydraulic log lift makes splitting large logs easy
  • Premium hydraulic filtration ensures long-lasting hydraulic components
  • Heavy-duty 8in. I-beam splitter design
  • Torsion suspension axle for high speed towing
  • Includes high-speed hubs, 15in. wheels with high-speed tires, an adjustable jack and 2in. coupler

Specification

Brand

NorthStar

Manufacture's Warranty

4 year limited warranty

Ship Weight

2435.0 LB

Product Type

3-Point

Ram Force

42 Tons

Max. Log Diameter

24 in

Max. Log Length

31 in

Continuous Force

42 Tons

Engine Brand

Honda

Engine Model

GX630

Engine Displacement

688 cc

Cycle Time

14 sec.

Tire Size

15 in

Splitter Orientation

Horizontal

Wheels

Yes

Product Weight

lb

Dimensions L x W x H (in.)

122.0 x 76.25 x 52.0 in
